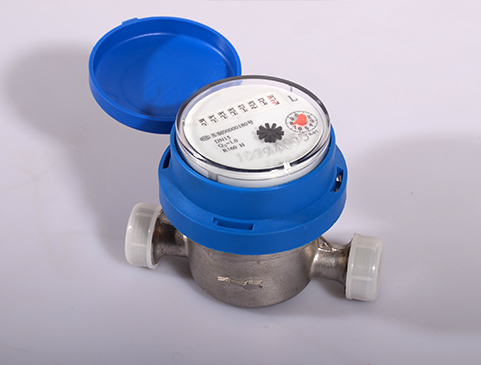

Vane Wheel Single-Jet Super Dry Dial Magnetic Type Cold (Hot) Water Meter

Nombre del Producto:

Vane Wheel Single-Jet Super Dry Dial Magnetic Type Cold (Hot) Water Meter

Specification:

Item	Standard
Operating condition	PN: 1.0/1.6 Mpa (10/16bar)
The water temperature	cold water up to 50℃ and hot water up to 90℃
Standard	ISO 4064 Class B
Material	Brass
Size	DN15-DN50
Pressure loss	ΔP63

Application:

To totalize the total volume of water passing through the pipeline.

Features: Large measuring range, high flow accuracy; Long life of service; Reliable operation; Magnetic shield protection; Vacuum sealed register. Upon request, the meter can be equipped with pulse output device.

Error curve: From qt inclusive up to and including qs is ±2%; From qmin inclusive up to but excluding qt is ±5%.

Packing: Carton + pallet.
