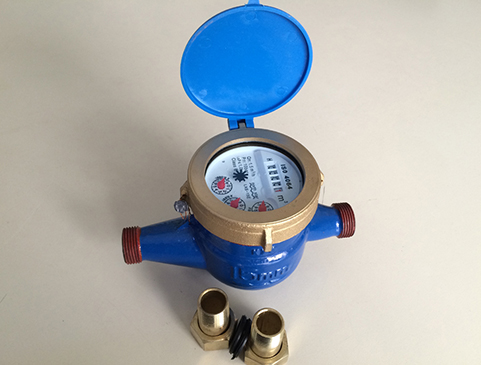

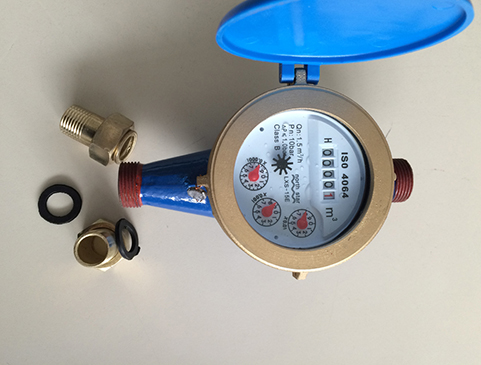

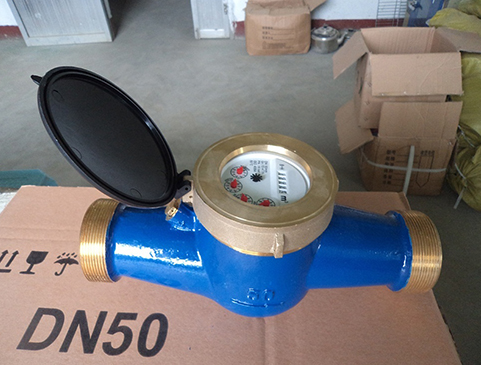

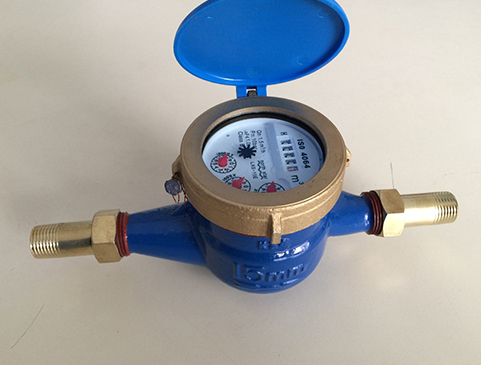

Vane Wheel Multi-Jet Wet Dial Magnetic Type Cold (Hot) Water Meter

Nombre del Producto:

Vane Wheel Multi-Jet Wet Dial Magnetic Type Cold (Hot) Water Meter

Specification:

Item	Standard
Operating condition	PN: 1.0/1.6 Mpa (10/16bar)
The water temperature	cold water up to 50℃ and hot water up to 90℃
Standard	ISO 4064 Class B
Material	Brass, Cast iron, Plastic
Size	DN15 - DN50
Pressure loss	ΔP63

Application:

To totalize the total volume of water passing through the pipeline.

Features: Large measuring range; high flow accuracy; Steady error curve; Long life of service; Reliable operation; Magnetic shield protection; Negligible head loss at working flow-rates; Vacuum sealed register without any condensation problem. Upon request, the meter can be equipped with pulse output device.

Error curve: From qt inclusive up to and including qs is ±2%; From qmin inclusive up to but excluding qt is ±5%.

Packing: Carton + pallet.
