Nombre del Producto:

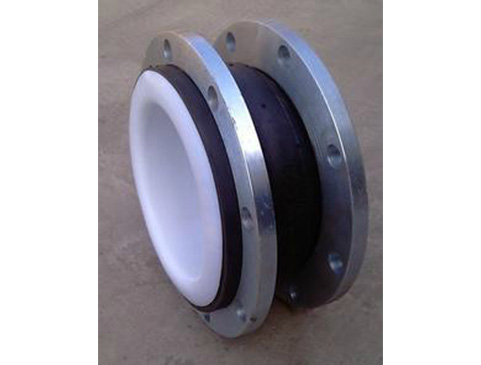

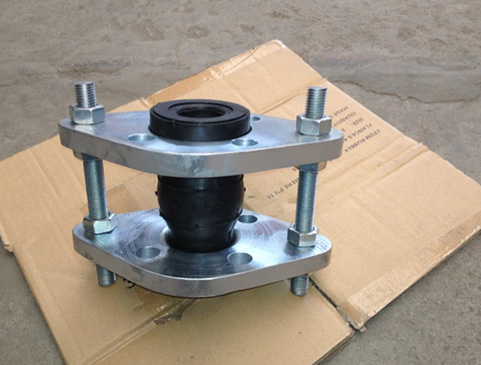

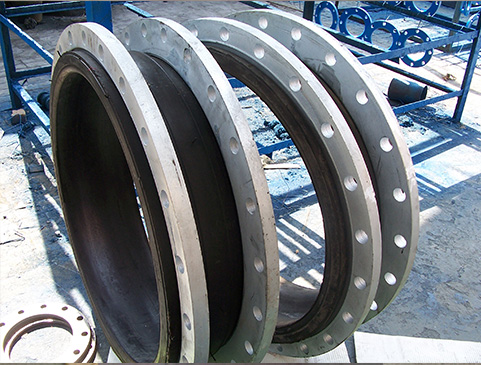

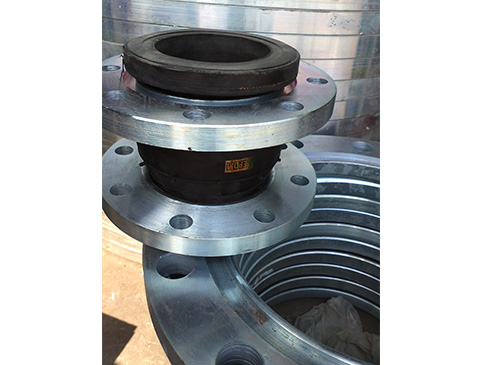

Rubber Expansion Joints

Consulte Ahora

Item	Specification
Operating condition	PN: 1.0/1.6/2.5 Mpa
The water temperature	up to 120℃
Material	EPDM/NBR/NR body with Carbon steel flange
Size	DN20-DN3000

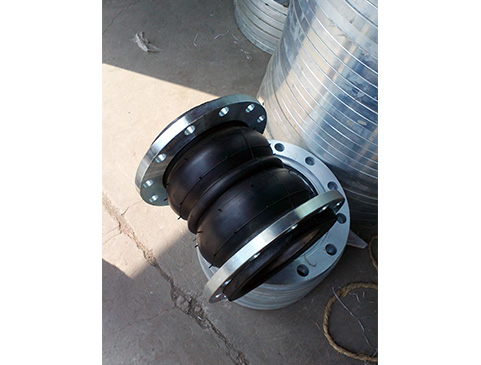

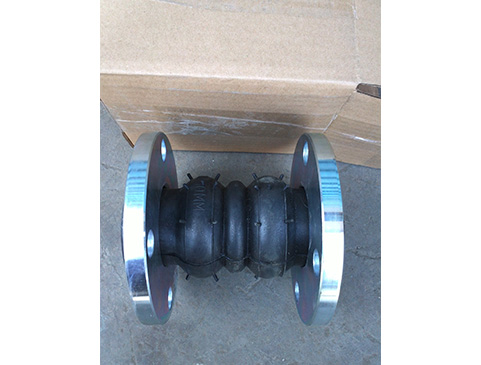

Structure	Single Sphere, Double Sphere or more
Standard of Flange	BS, DIN, ANSI, JIS or others provided drawing samples
Media	Hot Air, SO2, Steam, Water, Oil, Acid, Gas And etc.
Threads	DIN, BSPT, BSP, NPS, NPT, Metric, (ISO7/1, DIN 2999, ANSI B1.20.1)
Surface	Galvanized, Epoxy

Application:

The joint could primarily reduce the quiver and the noise of the piping system; completely solve the different piping problems as displacement of joint, axial flex and etc.

Features: Improve the flow circulation and avoid the bellow deformation. Absorbs thermal expansion and shock. Structure: bellows + flat welding flanges. Main material: Compensates converting misalignment Bellows: stainless steel 304. Flanges: stainless steel 304 or carbon steel. Compensates for exhaust converter misalignment.

Packing:

Carton + pallet.
